TRAIL OR MOUNTAIN

WE HAVE WORKED HARD ON THIS KIT SPECIFICALLY TO ACOMODATE A SINGLE PIPE, PUMP GAS KIT FOR THE TRAIL MARKET AND FOR THE MOUNTAIN MEN WHO ARE NOT IN FAVOUR OF TWIN PIPES

Big Power-Smaller Budget-Stock Crankshaft !

We love the Polaris Patriot 850 and 9R platforms. We wanted to offer a kit that utilized the stock crankshaft and a little easier on the wallet without sacrificing that raw, aggressive feel.   Enter the 1070 kit – inspired by legendary Big Bores of the 2000’s .  This package brings back that unmistakable torque curve: a crisp hit off the bottom, bursting through the mid-range and continuing to pull hard all the way to the top. Whether you’re yanking frozen stumps out of the ground or drag racing uphill, the 1070 delivers.

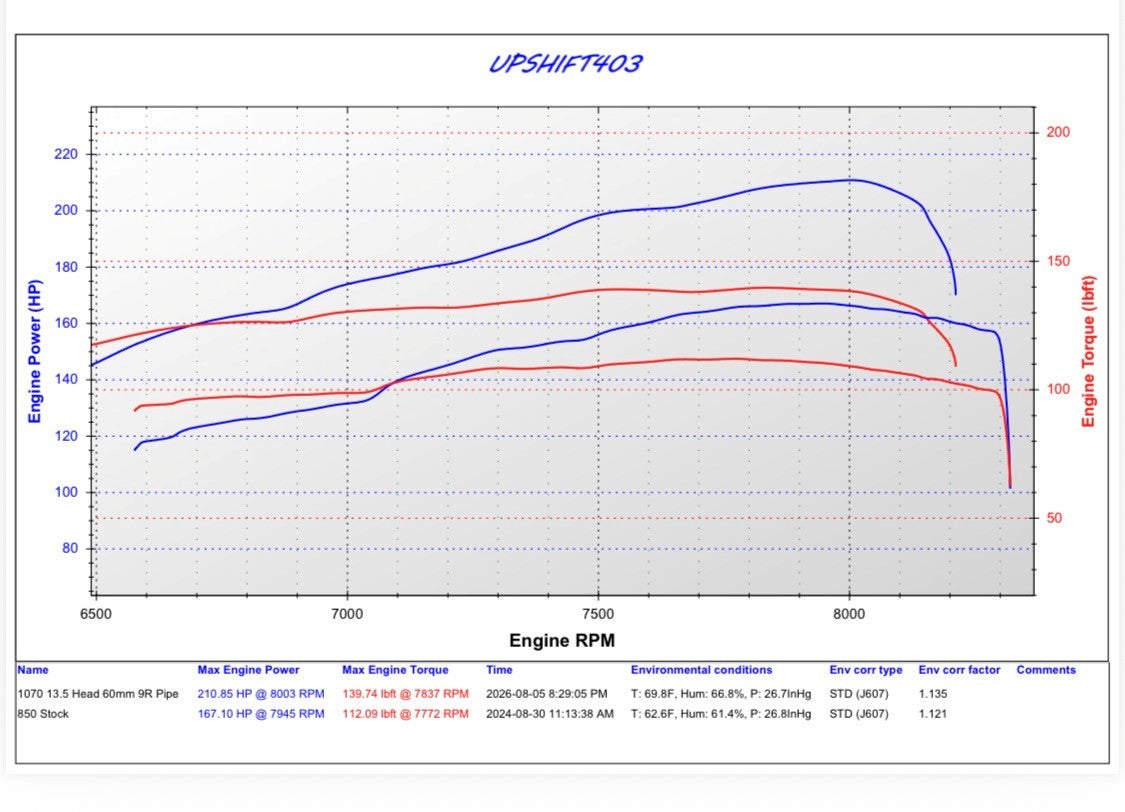

This engine feels like a supercharged 9R, with a gain of 40-45hp from start to finish over a stock 850.  It shares some of the short stroke character of the 9R but keeps it naturally aspirated for now.

Key Features

• Up to 218 HP

Captures the Rippy, Revy feel of the 9R with its oversquare shorter stroke design

• Utilizes the stock 850 or 9R crankshaft
• Utilizes the stock wristpin bearing
• Does require crankcase machining for cylinder fitment
• Utilizes forged piston
• Comes with larger 880cc injectors and harness
• Option for stock TB TPI, 54mm TB and 60mm TB

Option for:
  - 54 x 52mm throttle body with injector relocate
  - 60mm big bore throttle body with injector relocate

• Pump gas tuning for mountain or trail models
• Compatible with SLP Twin Pipe Kit
• Custom single SLP Pipe kit - Mountain or TRAIL


What’s Included in the Kit

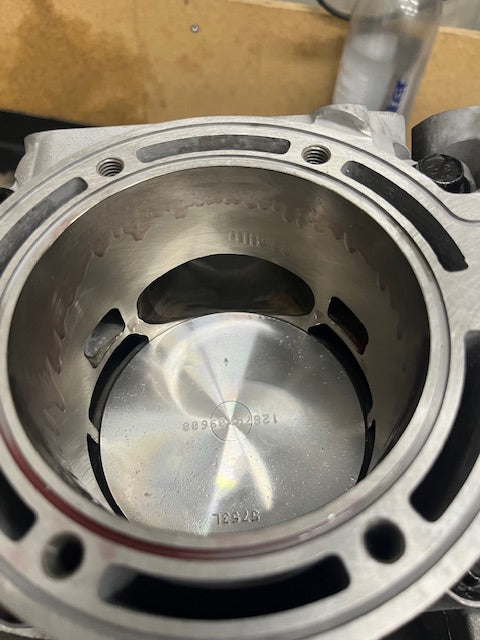

• Cast Big bore cylinder 96mm bore

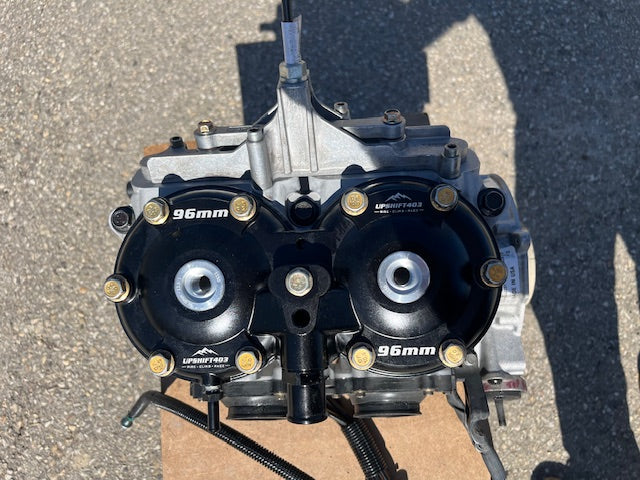

• Billet head c/w domes & new bolts & billet water fittings

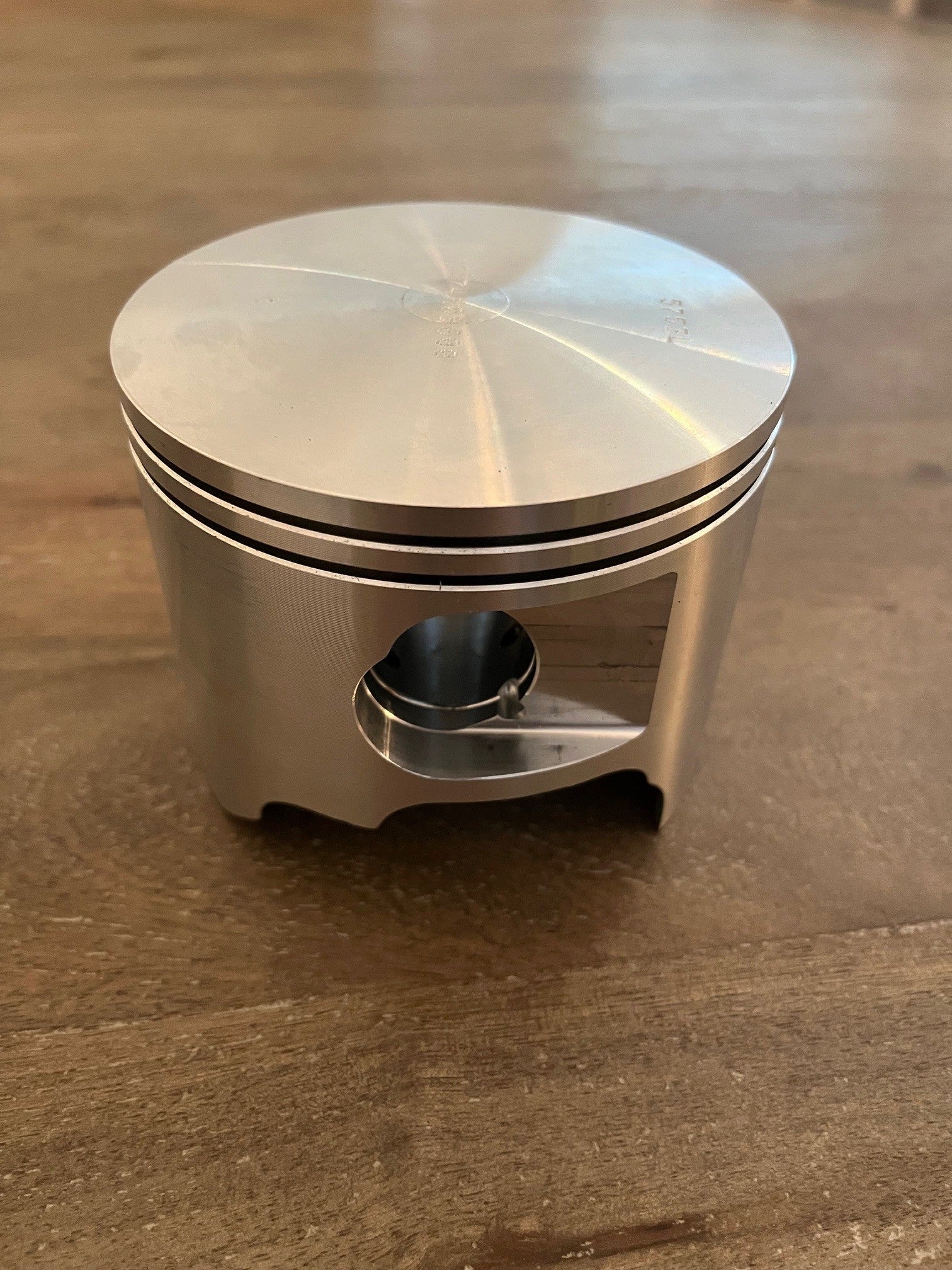

• 2X Forged Piston kits
• Top End Gasket Kit
• Stainless coated base gasket
• New Power Valves to match cylinder – single power valve design
• Bigger Injectors with harness
• Crankcase machining extra – can provide file for local machinist
• Requires ECU Reflash

Package Price: $5,500.00 CAD

Crankcase Machining Options

This kit requires crankcase machining to slightly open things up to fit the larger cylinder

• Transfer port case-matching
• Locating ring machining for triple bearing (can Loctite if not machining) if using a billet crank
• Add gas/oil mix passages to PTO and MAG bearings — factory blanks these ports and relies solely on direct oiling

  *Ask us about exchange crankcases — core return required.*

Optional Add-Ons

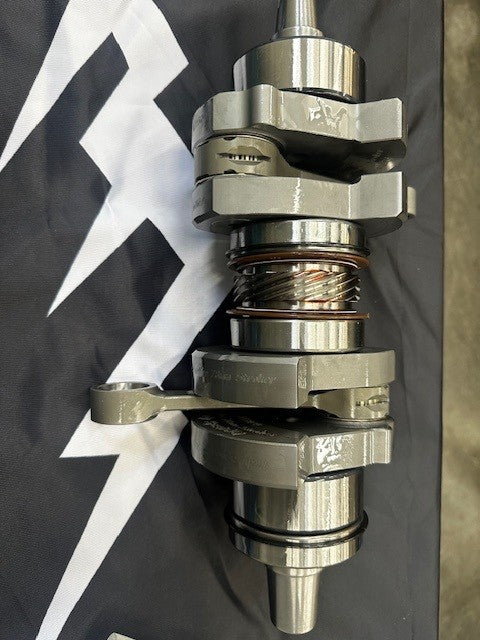

Indy Specialties billet stock replacement crank

• Oil injection delete kit for lightweight builds

• 52mm or 60mm Big Bore Throttle Bodies with injector relocation and custom reed valve adapters

• Fuel Inserts:
  - Pump Gas Insert
  - 100 Octane Insert
  - Race Inserts (110–120 Octane)

• SLP Twin Pipes

• Big Bore Single Pipe Kit

Why Choose Our Kit?

• Proven crankshaft durability with Indy Specialty billet design

• Engineered for peak performance in deep snow

• Pulls harder and longer than any modified 9R on any gas

• Thoughtfully designed for aggressive backcountry riders, flat land speed demons and racers of all kinds

Need help comparing more to a 900?  We are here to answer your questions, overthinkers welcome!
